The Bolt Energy 38V 105AH lithium kit replaces the entire lead-acid pack in your 36V cart with a single 4.0 kWh LiFePO4 battery — and unlike most lithium kits, everything needed for the swap comes in the box: waterproof high-speed charger, Smart state-of-charge meter, Bluetooth receiver, mounting brackets, terminal hardware, and the AC hardwire port with cover plates.
At 78 lbs, the pack sheds hundreds of pounds versus lead acid, which you feel immediately in hill climbing and braking. There is no watering, no terminal corrosion, and no equalization charging — top off a partial charge anytime with zero memory effect. The built-in BMS manages 250A continuous discharge with surge capability for upgraded controllers, and the Bluetooth receiver lets you check the pack from your phone.
Standard vs. Professional: the Standard kit covers a clean install on a healthy cart. The Professional kit adds a 400A heavy-duty solenoid, two 2AWG premium installation cables, a 30-amp reducer, and a lead battery removal strap — worth it on older carts or anything running a higher-amp controller.
Every Bolt Energy pack is backed by a 12-year manufacturer warranty — among the longest coverage in the industry — with US-based support from us, the people who sell it.
Bolt Energy 38V 105AH — Specifications
| Electrical Specifications | |
| Nominal Voltage | 38.4V |
| Working Voltage | 32.4 - 43.8V |
| Recommended Voltage | 36.0V - 42.6V |
| Nominal Capacity | 105Ah |
| Energy | 4.032KWh |
| Capacity at 25A | 252 min |
| Efficiency | 0.99 |
| Self-Discharge | <3% per Month |
| Discharge Specifications | |
| Maximum Continuous Discharge Current | 250A |
| Peak Discharge Current | 520A ± 15.6A (30S) |
| BMS Discharge Current Cut-Off | |
| BMS Discharge Voltage Cut-Off | 30V |
| Recommended Low Voltage Disconnect | 36.0V |
| BMS Reconnect Voltage | 31.2V |
| Discharge Temperature | -4 to 149°F (-20 to 65°C) |
| Charge Specifications | |
| Recommended Charge Current | 5 - 52A |
| Maximum Input Current | 350A |
| Charge Current Cut-Off | 375A |
| BMS Charge Voltage Cut-Off | 43.8V |
| Reconnect Voltage | <43.8V |
| Charging Temp. Range | 34°F to 140°F (0-60°C) |
| Mechanical Specifications | |
| Dimensions (L x W x H) | 11.14" x 10.58" x 10.67" |
| Weight | 77.27lbs (35.05kg) |
| Terminal Type | M8*1.5*25mm |
| Cell Configuration | 1P16S |
| Case Material | Powder Coated Steel |
| Enclosure Protection | Designed with IP66 Standard |
| Cell Type - Chemistry | Prismatic- LiFePO4 |
| Communication | |
| Bluetooth | Bluetooth receiver |
| CAN | CAN port for testing battery |
Specifications published by Bolt Energy USA.
Downloads
Installation Video
Select your cart above — if an install video is available for that fitment, it will appear here. You can also browse all videos on our Installation Videos hub.
Select your cart above — if an install video is available for that fitment, it will appear here. You can also browse all videos on our Installation Videos hub.
Select your cart above — if an install video is available for that fitment, it will appear here. You can also browse all videos on our Installation Videos hub.
Select your cart above — if an install video is available for that fitment, it will appear here. You can also browse all videos on our Installation Videos hub.
Select your cart above — if an install video is available for that fitment, it will appear here. You can also browse all videos on our Installation Videos hub.
Select your cart above — if an install video is available for that fitment, it will appear here. You can also browse all videos on our Installation Videos hub.
Select your cart above — if an install video is available for that fitment, it will appear here. You can also browse all videos on our Installation Videos hub.
Installation video for: Club Car DS (36V) — Professional — Heated
Installation video for: Club Car DS (36V) — Standard — Heated
Installation video for: EZGO TXT (36V) — Professional — Heated
Installation video for: EZGO TXT (36V) — Standard — Heated
Select your cart above — if an install video is available for that fitment, it will appear here. You can also browse all videos on our Installation Videos hub.
Select your cart above — if an install video is available for that fitment, it will appear here. You can also browse all videos on our Installation Videos hub.
Select your cart above — if an install video is available for that fitment, it will appear here. You can also browse all videos on our Installation Videos hub.
Select your cart above — if an install video is available for that fitment, it will appear here. You can also browse all videos on our Installation Videos hub.
Select your cart above — if an install video is available for that fitment, it will appear here. You can also browse all videos on our Installation Videos hub.
Select your cart above — if an install video is available for that fitment, it will appear here. You can also browse all videos on our Installation Videos hub.
Installation video for: Yamaha G1-G16 — Professional — Heated
Installation video for: Yamaha G1-G16 — Professional
Installation video for: Yamaha G1-G16 — Standard — Heated

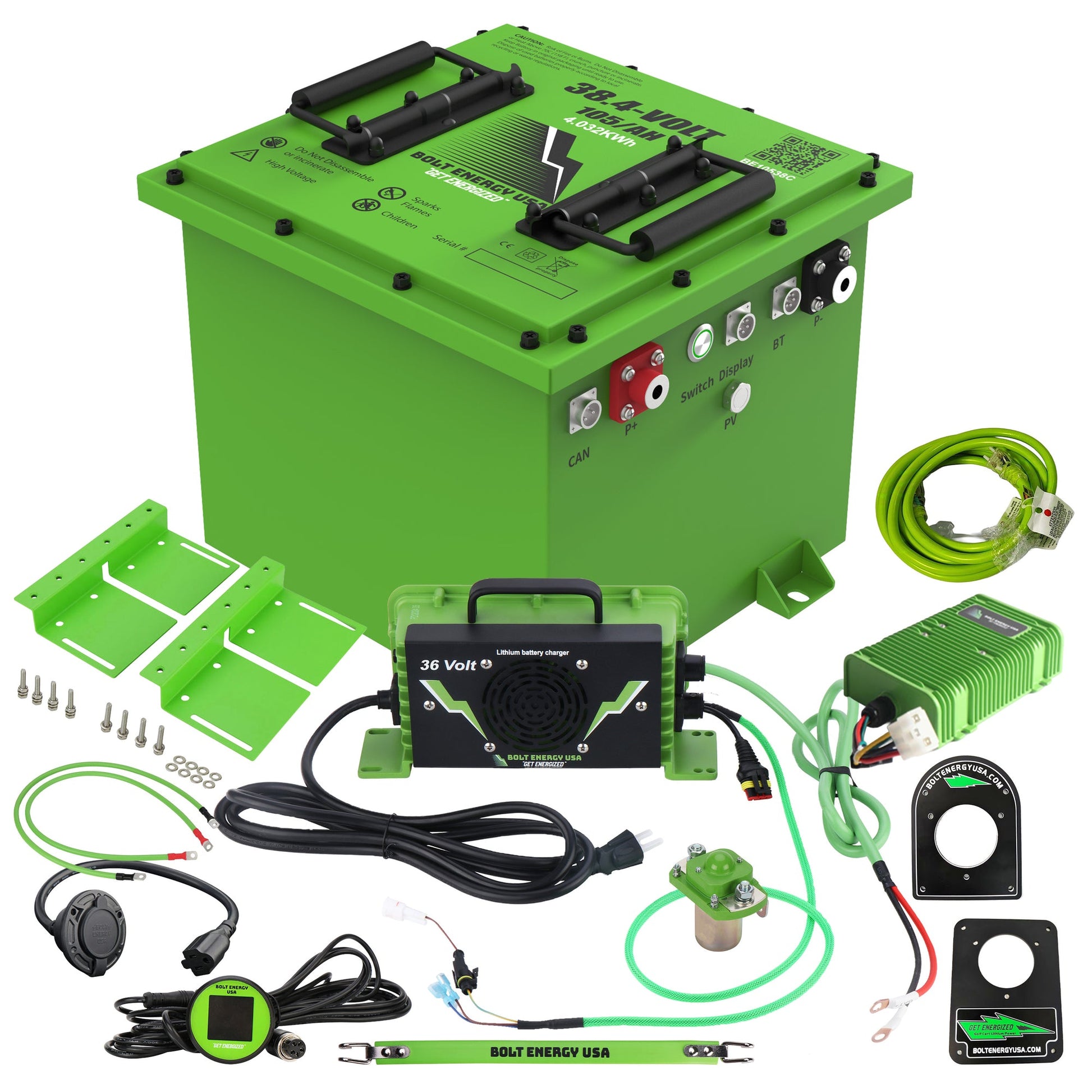

Club Car DS (36V) — Professional — What's Included
- 38.4V 105Ah Battery
- Bluetooth receiver
- Smart SOC (State of charge meter)
- Owner's manual
- Six 3/8 battery ring terminal connectors
- Ten 10" tie straps
- Bolt Energy USA stickers
- Waterproof high-speed charger
- Mounting brackets, Nuts, and bolts
- AC Hardwire PORT
- AC hardwire DECO Cover plates
- 30-amp reducer
- Two 40" 2AWG premium installation cables
- 400A solenoid
- Lead battery removal strap
- 15ft 12 AWG Green lighted extension cord

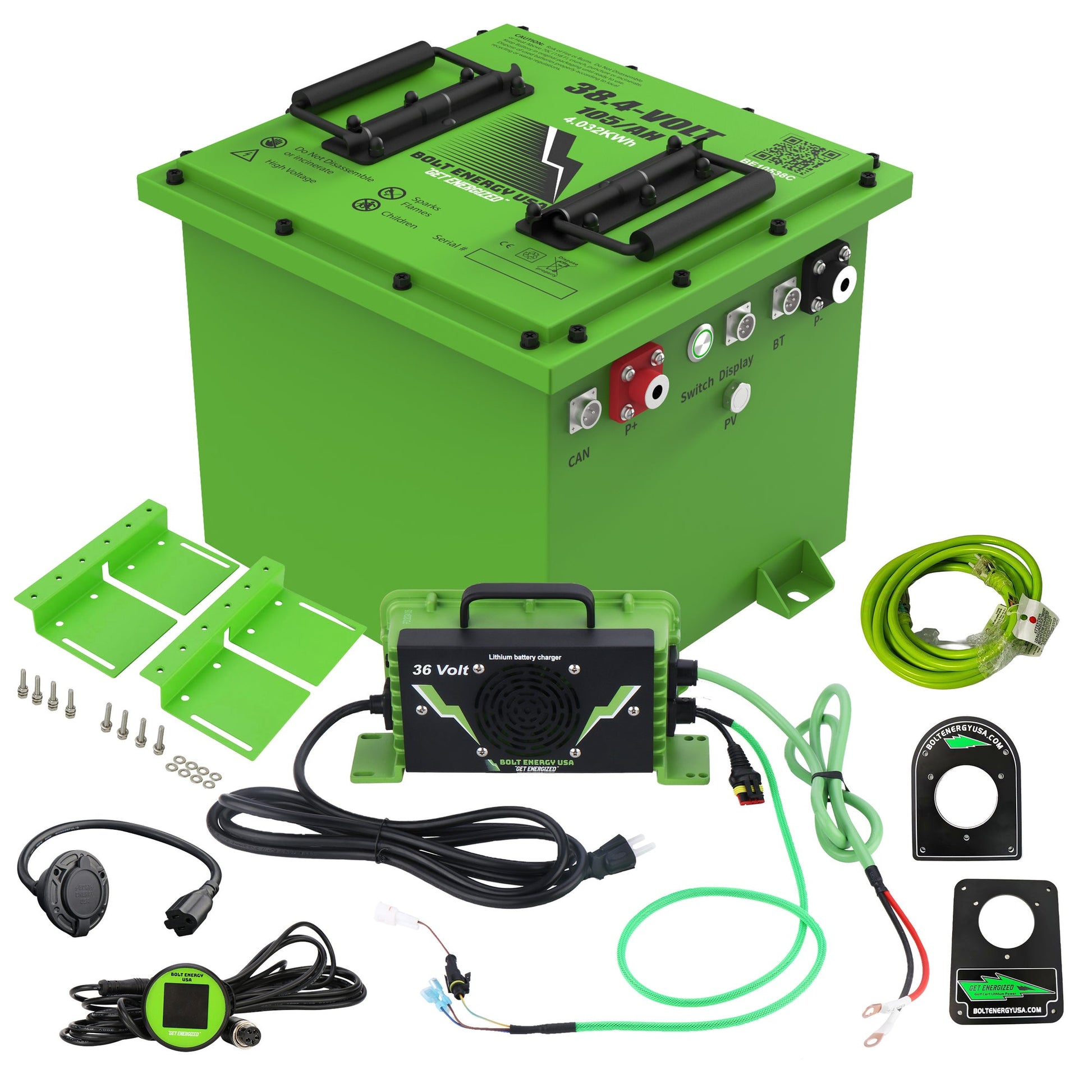

Club Car DS (36V) — Standard — What's Included
- 38.4V 105Ah Battery
- Bluetooth receiver
- Smart SOC (State of charge meter)
- Owner's manual
- Six 3/8 battery ring terminal connectors
- Ten 10" tie straps
- Bolt Energy USA stickers
- Waterproof high-speed charger
- Mounting brackets, Nuts, and bolts
- AC Hardwire PORT
- AC hardwire DECO Cover plates
- 15ft 12 AWG Green lighted extension cord
EZGO TXT (36V) — Professional — What's Included
- 38.4V 105Ah Battery
- Bluetooth receiver
- Smart SOC (State of charge meter)
- Owner's manual
- Six 3/8 battery ring terminal connectors
- Ten 10" tie straps
- Bolt Energy USA stickers
- Waterproof high-speed charger
- Mounting brackets, Nuts, and bolts
- AC Hardwire PORT
- AC hardwire DECO Cover plates
- 30-amp reducer
- Two 40" 2AWG premium installation cables
- 400A solenoid
- Lead battery removal strap
- 15ft 12 AWG Green lighted extension cord
EZGO TXT (36V) — Standard — What's Included
- 38.4V 105Ah Battery
- Bluetooth receiver
- Smart SOC (State of charge meter)
- Owner's manual
- Six 3/8 battery ring terminal connectors
- Ten 10" tie straps
- Bolt Energy USA stickers
- Waterproof high-speed charger
- Mounting brackets, Nuts, and bolts
- AC Hardwire PORT
- AC hardwire DECO Cover plates
- 15ft 12 AWG Green lighted extension cord
Universal — Professional — What's Included
- 38.4V 105Ah Battery
- Bluetooth receiver
- Smart SOC (State of charge meter)
- Owner's manual
- Six 3/8 battery ring terminal connectors
- Ten 10" tie straps
- Bolt Energy USA stickers
- Waterproof high-speed charger
- Mounting brackets, Nuts, and bolts
- AC Hardwire PORT
- AC hardwire DECO Cover plates
- 30-amp reducer
- Two 40" 2AWG premium installation cables
- 400A solenoid
- Lead battery removal strap
- 15ft 12 AWG Green lighted extension cord
Universal — Standard — What's Included
- 38.4V 105Ah Battery
- Bluetooth receiver
- Smart SOC (State of charge meter)
- Owner's manual
- Six 3/8 battery ring terminal connectors
- Ten 10" tie straps
- Bolt Energy USA stickers
- Waterproof high-speed charger
- Mounting brackets, Nuts, and bolts
- AC Hardwire PORT
- AC hardwire DECO Cover plates
- 15ft 12 AWG Green lighted extension cord
Yamaha G1-G16 — Standard — What's Included
- 38.4V 105Ah Battery
- Bluetooth receiver
- Smart SOC (State of charge meter)
- Owner's manual
- Six 3/8 battery ring terminal connectors
- Ten 10" tie straps
- Bolt Energy USA stickers
- Waterproof high-speed charger
- Mounting brackets, Nuts, and bolts
- AC Hardwire PORT
- AC hardwire DECO Cover plates
- 15ft 12 AWG Green lighted extension cord
Club Car DS (36V) — Professional — Heated — What's Included
- 38.4V 105Ah Battery
- Bluetooth receiver
- Smart SOC (State of charge meter)
- Owner’s manual
- Six 3/8 battery ring terminal connectors
- Ten 10" tie straps
- Bolt Energy USA stickers
- Waterproof high-speed charger
- Mounting brackets, Nuts, and bolts
- AC Hardwire PORT
- AC hardwire DECO Cover plates
- 30-amp reducer
- Two 40" 2AWG premium installation cables
- 400A solenoid
- Lead battery removal strap
- 15ft 12 AWG Green lighted extension cord
- Heated Battery Specifications:
- Heated batteries warm themselves as they start to charge, and once they hit around 34 degrees, it starts charging normally
- The heating system only runs when the battery is under the charging temperature and will automatically shut off once the proper temperature is reached
- The battery can charge in unheated places such as garages, barns and even outdoors
- The heating system only activates while the charger is plugged in
- Heated batteries can warm themselves overnight and be ready to use the next day
- A heated battery temperature charge and discharge specifications still operate the same as standard batteries
Club Car DS (36V) — Standard — Heated — What's Included
- 38.4V 105Ah Battery
- Bluetooth receiver
- Smart SOC (State of charge meter)
- Owner’s manual
- Six 3/8 battery ring terminal connectors
- Ten 10" tie straps
- Bolt Energy USA stickers
- Waterproof high-speed charger
- Mounting brackets, Nuts, and bolts
- AC Hardwire PORT
- AC hardwire DECO Cover plates
- 15ft 12 AWG Green lighted extension cord
- Heated Battery Specifications:
- Heated batteries warm themselves as they start to charge, and once they hit around 34 degrees, it starts charging normally
- The heating system only runs when the battery is under the charging temperature and will automatically shut off once the proper temperature is reached
- The battery can charge in unheated places such as garages, barns and even outdoors
- The heating system only activates while the charger is plugged in
- Heated batteries can warm themselves overnight and be ready to use the next day
- A heated battery temperature charge and discharge specifications still operate the same as standard batteries
EZGO TXT (36V) — Professional — Heated — What's Included
- 38.4V 105Ah Battery
- Bluetooth receiver
- Smart SOC (State of charge meter)
- Owner’s manual
- Six 3/8 battery ring terminal connectors
- Ten 10" tie straps
- Bolt Energy USA stickers
- Waterproof high-speed charger
- Mounting brackets, Nuts, and bolts
- AC Hardwire PORT
- AC hardwire DECO Cover plates
- 30-amp reducer
- Two 40" 2AWG premium installation cables
- 400A solenoid
- Lead battery removal strap
- 15ft 12 AWG Green lighted extension cord
- Heated Battery Specifications:
- Heated batteries warm themselves as they start to charge, and once they hit around 34 degrees, it starts charging normally
- The heating system only runs when the battery is under the charging temperature and will automatically shut off once the proper temperature is reached
- The battery can charge in unheated places such as garages, barns and even outdoors
- The heating system only activates while the charger is plugged in
- Heated batteries can warm themselves overnight and be ready to use the next day
- A heated battery temperature charge and discharge specifications still operate the same as standard batteries
EZGO TXT (36V) — Standard — Heated — What's Included
- 38.4V 105Ah Battery
- Bluetooth receiver
- Smart SOC (State of charge meter)
- Owner’s manual
- Six 3/8 battery ring terminal connectors
- Ten 10" tie straps
- Bolt Energy USA stickers
- Waterproof high-speed charger
- Mounting brackets, Nuts, and bolts
- AC Hardwire PORT
- AC hardwire DECO Cover plates
- 15ft 12 AWG Green lighted extension cord
- Heated Battery Specifications:
- Heated batteries warm themselves as they start to charge, and once they hit around 34 degrees, it starts charging normally
- The heating system only runs when the battery is under the charging temperature and will automatically shut off once the proper temperature is reached
- The battery can charge in unheated places such as garages, barns and even outdoors
- The heating system only activates while the charger is plugged in
- Heated batteries can warm themselves overnight and be ready to use the next day
- A heated battery temperature charge and discharge specifications still operate the same as standard batteries
Star EV Classic (36V) — Professional — Heated — What's Included
- 38.4V 105Ah Battery
- Bluetooth receiver
- Smart SOC (State of charge meter)
- Owner’s manual
- Six 3/8 battery ring terminal connectors
- Ten 10" tie straps
- Bolt Energy USA stickers
- Waterproof high-speed charger
- Mounting brackets, Nuts, and bolts
- AC Hardwire PORT
- AC hardwire DECO Cover plates
- 30-amp reducer
- Two 40" 2AWG premium installation cables
- 400A solenoid
- Lead battery removal strap
- 15ft 12 AWG Green lighted extension cord
- Heated Battery Specifications:
- Heated batteries warm themselves as they start to charge, and once they hit around 34 degrees, it starts charging normally
- The heating system only runs when the battery is under the charging temperature and will automatically shut off once the proper temperature is reached
- The battery can charge in unheated places such as garages, barns and even outdoors
- The heating system only activates while the charger is plugged in
- Heated batteries can warm themselves overnight and be ready to use the next day
- A heated battery temperature charge and discharge specifications still operate the same as standard batteries
Star EV Classic (36V) — Professional — What's Included
- 38.4V 105Ah Battery
- Bluetooth receiver
- Smart SOC (State of charge meter)
- Owner’s manual
- Six 3/8 battery ring terminal connectors
- Ten 10" tie straps
- Bolt Energy USA stickers
- Waterproof high-speed charger
- Mounting brackets, Nuts, and bolts
- AC Hardwire PORT
- AC hardwire DECO Cover plates
- 30-amp reducer
- Two 40" 2AWG premium installation cables
- 400A solenoid
- Lead battery removal strap
- 15ft 12 AWG Green lighted extension cord
Star EV Classic (36V) — Standard — Heated — What's Included
- 38.4V 105Ah Battery
- Bluetooth receiver
- Smart SOC (State of charge meter)
- Owner’s manual
- Six 3/8 battery ring terminal connectors
- Ten 10" tie straps
- Bolt Energy USA stickers
- Waterproof high-speed charger
- Mounting brackets, Nuts, and bolts
- AC Hardwire PORT
- AC hardwire DECO Cover plates
- 15ft 12 AWG Green lighted extension cord
- Heated Battery Specifications:
- Heated batteries warm themselves as they start to charge, and once they hit around 34 degrees, it starts charging normally
- The heating system only runs when the battery is under the charging temperature and will automatically shut off once the proper temperature is reached
- The battery can charge in unheated places such as garages, barns and even outdoors
- The heating system only activates while the charger is plugged in
- Heated batteries can warm themselves overnight and be ready to use the next day
- A heated battery temperature charge and discharge specifications still operate the same as standard batteries
Star EV Classic (36V) — Standard — What's Included
- 38.4V 105Ah Battery
- Bluetooth receiver
- Smart SOC (State of charge meter)
- Owner’s manual
- Six 3/8 battery ring terminal connectors
- Ten 10" tie straps
- Bolt Energy USA stickers
- Waterproof high-speed charger
- Mounting brackets, Nuts, and bolts
- AC Hardwire PORT
- AC hardwire DECO Cover plates
- 15ft 12 AWG Green lighted extension cord
Universal — Professional — Heated — What's Included
- 38.4V 105Ah Battery
- Bluetooth receiver
- Smart SOC (State of charge meter)
- Owner’s manual
- Six 3/8 battery ring terminal connectors
- Ten 10" tie straps
- Bolt Energy USA stickers
- Waterproof high-speed charger
- Mounting brackets, Nuts, and bolts
- AC Hardwire PORT
- AC hardwire DECO Cover plates
- 30-amp reducer
- Two 40" 2AWG premium installation cables
- 400A solenoid
- Lead battery removal strap
- 15ft 12 AWG Green lighted extension cord
- Heated Battery Specifications:
- Heated batteries warm themselves as they start to charge, and once they hit around 34 degrees, it starts charging normally
- The heating system only runs when the battery is under the charging temperature and will automatically shut off once the proper temperature is reached
- The battery can charge in unheated places such as garages, barns and even outdoors
- The heating system only activates while the charger is plugged in
- Heated batteries can warm themselves overnight and be ready to use the next day
- A heated battery temperature charge and discharge specifications still operate the same as standard batteries
Universal — Standard — Heated — What's Included
- 38.4V 105Ah Battery
- Bluetooth receiver
- Smart SOC (State of charge meter)
- Owner’s manual
- Six 3/8 battery ring terminal connectors
- Ten 10" tie straps
- Bolt Energy USA stickers
- Waterproof high-speed charger
- Mounting brackets, Nuts, and bolts
- AC Hardwire PORT
- AC hardwire DECO Cover plates
- 15ft 12 AWG Green lighted extension cord
- Heated Battery Specifications:
- Heated batteries warm themselves as they start to charge, and once they hit around 34 degrees, it starts charging normally
- The heating system only runs when the battery is under the charging temperature and will automatically shut off once the proper temperature is reached
- The battery can charge in unheated places such as garages, barns and even outdoors
- The heating system only activates while the charger is plugged in
- Heated batteries can warm themselves overnight and be ready to use the next day
- A heated battery temperature charge and discharge specifications still operate the same as standard batteries
Yamaha G1-G16 — Professional — Heated — What's Included
- 38.4V 105Ah Battery
- Bluetooth receiver
- Smart SOC (State of charge meter)
- Owner’s manual
- Six 3/8 battery ring terminal connectors
- Ten 10" tie straps
- Bolt Energy USA stickers
- Waterproof high-speed charger
- Mounting brackets, Nuts, and bolts
- AC Hardwire PORT
- AC hardwire DECO Cover plates
- 30-amp reducer
- Two 40" 2AWG premium installation cables
- 400A solenoid
- Lead battery removal strap
- 15ft 12 AWG Green lighted extension cord
- Heated Battery Specifications:
- Heated batteries warm themselves as they start to charge, and once they hit around 34 degrees, it starts charging normally
- The heating system only runs when the battery is under the charging temperature and will automatically shut off once the proper temperature is reached
- The battery can charge in unheated places such as garages, barns and even outdoors
- The heating system only activates while the charger is plugged in
- Heated batteries can warm themselves overnight and be ready to use the next day
- A heated battery temperature charge and discharge specifications still operate the same as standard batteries
Yamaha G1-G16 — Professional — What's Included
- 38.4V 105Ah Battery
- Bluetooth receiver
- Smart SOC (State of charge meter)
- Owner’s manual
- Six 3/8 battery ring terminal connectors
- Ten 10" tie straps
- Bolt Energy USA stickers
- Waterproof high-speed charger
- Mounting brackets, Nuts, and bolts
- AC Hardwire PORT
- AC hardwire DECO Cover plates
- 30-amp reducer
- Two 40" 2AWG premium installation cables
- 400A solenoid
- Lead battery removal strap
- 15ft 12 AWG Green lighted extension cord
Yamaha G1-G16 — Standard — Heated — What's Included
- 73.6V 105Ah Battery
- Bluetooth receiver
- Smart SOC (State of charge meter)
- Owner’s manual
- Six 3/8 battery ring terminal connectors
- Ten 10" tie straps
- Bolt Energy USA stickers
- Waterproof high-speed charger
- Mounting brackets, Nuts, and bolts
- AC Hardwire Port
- AC hardwire DECO cover plates
- 15ft 12 AWG Green lighted extension cord
- Heated Battery Specifications:
- Heated batteries warm themselves as they start to charge, and once they hit around 34 degrees, it starts charging normally
- The heating system only runs when the battery is under the charging temperature and will automatically shut off once the proper temperature is reached
- The battery can charge in unheated places such as garages, barns and even outdoors
- The heating system only activates while the charger is plugged in
- Heated batteries can warm themselves overnight and be ready to use the next day
- A heated battery temperature charge and discharge specifications still operate the same as standard batteries
Included parts change based on the cart selected above.
★ Veteran owned · Family operated ★
Buy with zero second-guessing
Authorized dealer pricing on every lithium kit we carry.
Full Warranty
Backed by manufacturers
Fast Shipping
From our USA warehouse
Price Match
Find it cheaper? We'll match
Expert Support
Not sure which kit? Ask us!
