Bolt Energy 51V 105AH Thin Lithium Battery Kit | Select Your Cart

Kit type

Battery

$2,495.00
$2,495.00 $2,975.00

You Might Need These
✓ Free shipping from our USA warehouse
✓ Price-match guarantee
✓ Backed by manufacturer warranty
✓ Expert support — not sure which kit? Ask us!
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Shop safely with us
Up to 16% off

The Bolt Energy 51V 105AH Thin lithium kit replaces the entire lead-acid pack in your 48V cart with a single 5.3 kWh LiFePO4 battery — and unlike most lithium kits, everything needed for the swap comes in the box: waterproof high-speed charger, Smart state-of-charge meter, Bluetooth receiver, mounting brackets, terminal hardware, and the AC hardwire port with cover plates.

At 100.8 lbs, the pack sheds hundreds of pounds versus lead acid, which you feel immediately in hill climbing and braking. There is no watering, no terminal corrosion, and no equalization charging — top off a partial charge anytime with zero memory effect. The built-in BMS manages 250A continuous discharge with surge capability for upgraded controllers, and the Bluetooth receiver lets you check the pack from your phone.

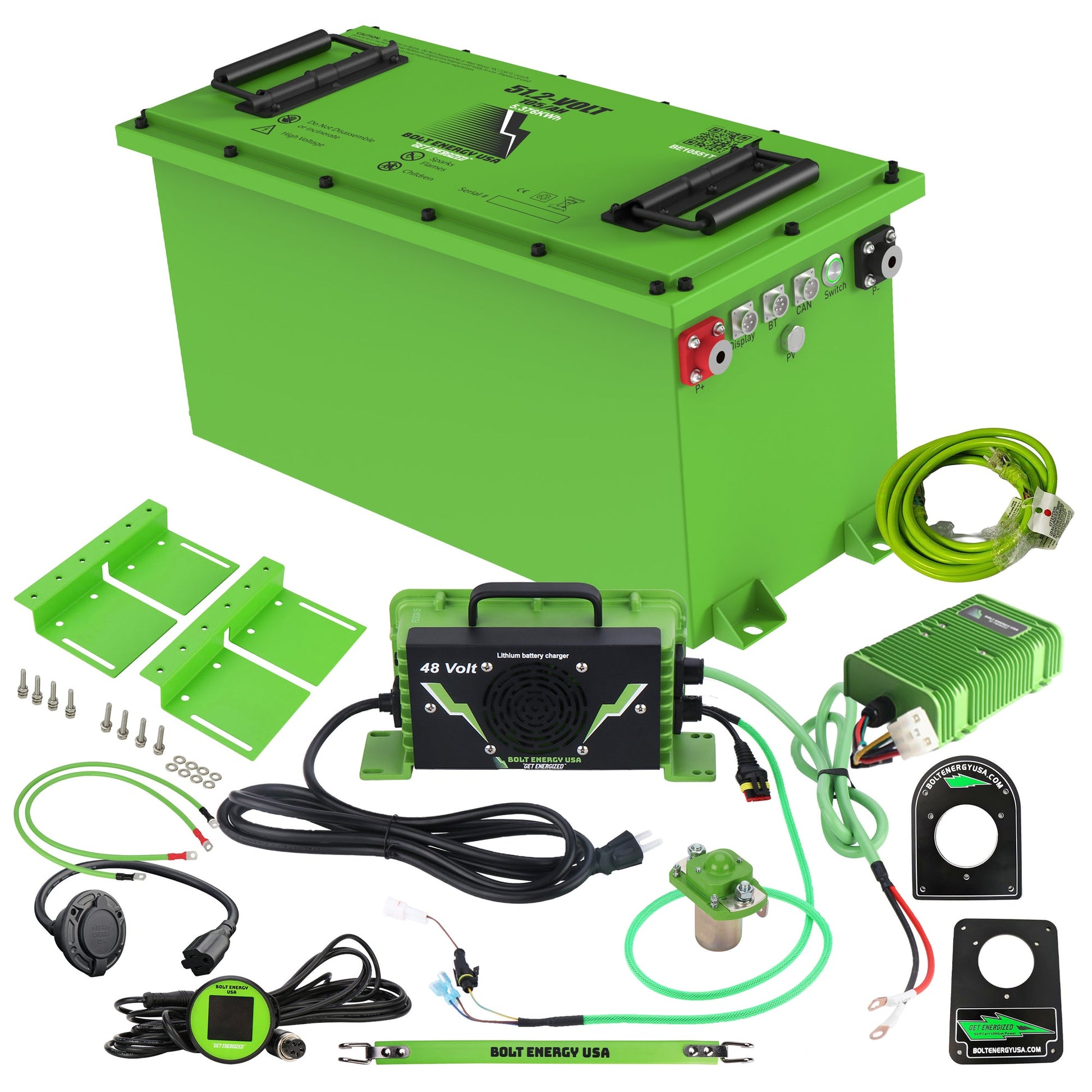

Standard vs. Professional: the Standard kit covers a clean install on a healthy cart. The Professional kit adds a 400A heavy-duty solenoid, two 2AWG premium installation cables, a 30-amp reducer, and a lead battery removal strap — worth it on older carts or anything running a higher-amp controller.

Every Bolt Energy pack is backed by a 12-year manufacturer warranty — among the longest coverage in the industry — with US-based support from us, the people who sell it.

Bolt Energy 51V 105AH Thin — Specifications

Electrical Specifications
Nominal Voltage51.2V
Working Voltage43.2 - 58.4V
Recommended Voltage48.0V - 57.0V
Nominal Capacity105Ah
Energy5,376Wh
Capacity at 25A252 min
Efficiency0.99
Self-Discharge<3% per Month
Discharge Specifications
Maximum Continuous Discharge Current250A
Peak Discharge Current520A ± 15.6A (30S)
BMS Discharge Current Cut-Off
BMS Discharge Voltage Cut-Off40V
Recommended Low Voltage Disconnect48.0V
BMS Reconnect Voltage41.6V
Discharge Temperature-4 to 149°F (-20 to 65°C)
Charge Specifications
Recommended Charge Current5 - 52A
Maximum Input Current350A
Charge Current Cut-Off375A
BMS Charge Voltage Cut-Off58.5V
Reconnect Voltage<58.5V
Charging Temp. Range34°F to 140°F (0-60°C)
Mechanical Specifications
Dimensions (L x W x H)20" x 8.43" x 10.65"
Weight105lbs (47.63kg)
Terminal TypeM8*1.5*25mm
Cell Configuration1P16S
Case MaterialPowder Coated Steel
Enclosure ProtectionDesigned with IP66 Standard
Cell Type - ChemistryPrismatic- LiFePO4
Communication
BluetoothBluetooth receiver
CANCAN port for testing battery

Specifications published by Bolt Energy USA.

Downloads

Installation Video

Select your cart above — if an install video is available for that fitment, it will appear here. You can also browse all videos on our Installation Videos hub.

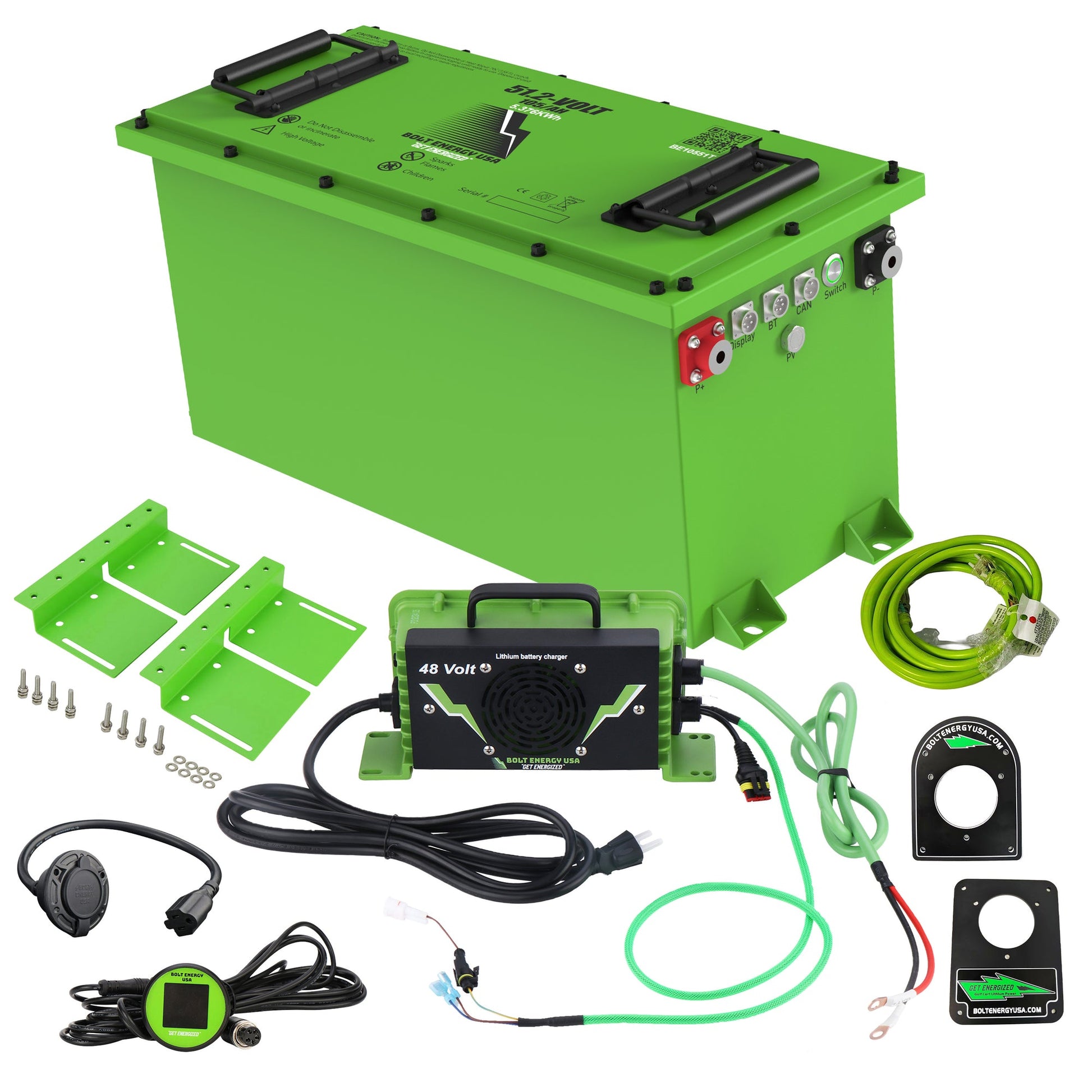

EZGO TXT (48V) / Express — Standard — What's Included

  • 51.2V 105Ah "Thin" Battery
  • Bluetooth receiver
  • Smart SOC (State of charge meter)
  • Owner's manual
  • Six 3/8 battery ring terminal connectors
  • Ten 10" tie straps
  • Bolt Energy USA stickers
  • Waterproof high-speed charger
  • Mounting brackets, Nuts, and bolts
  • AC Hardwire Port
  • AC hardwire DECO cover plates
  • 15ft 12 AWG Green lighted extension cord

Included parts change based on the cart selected above.
