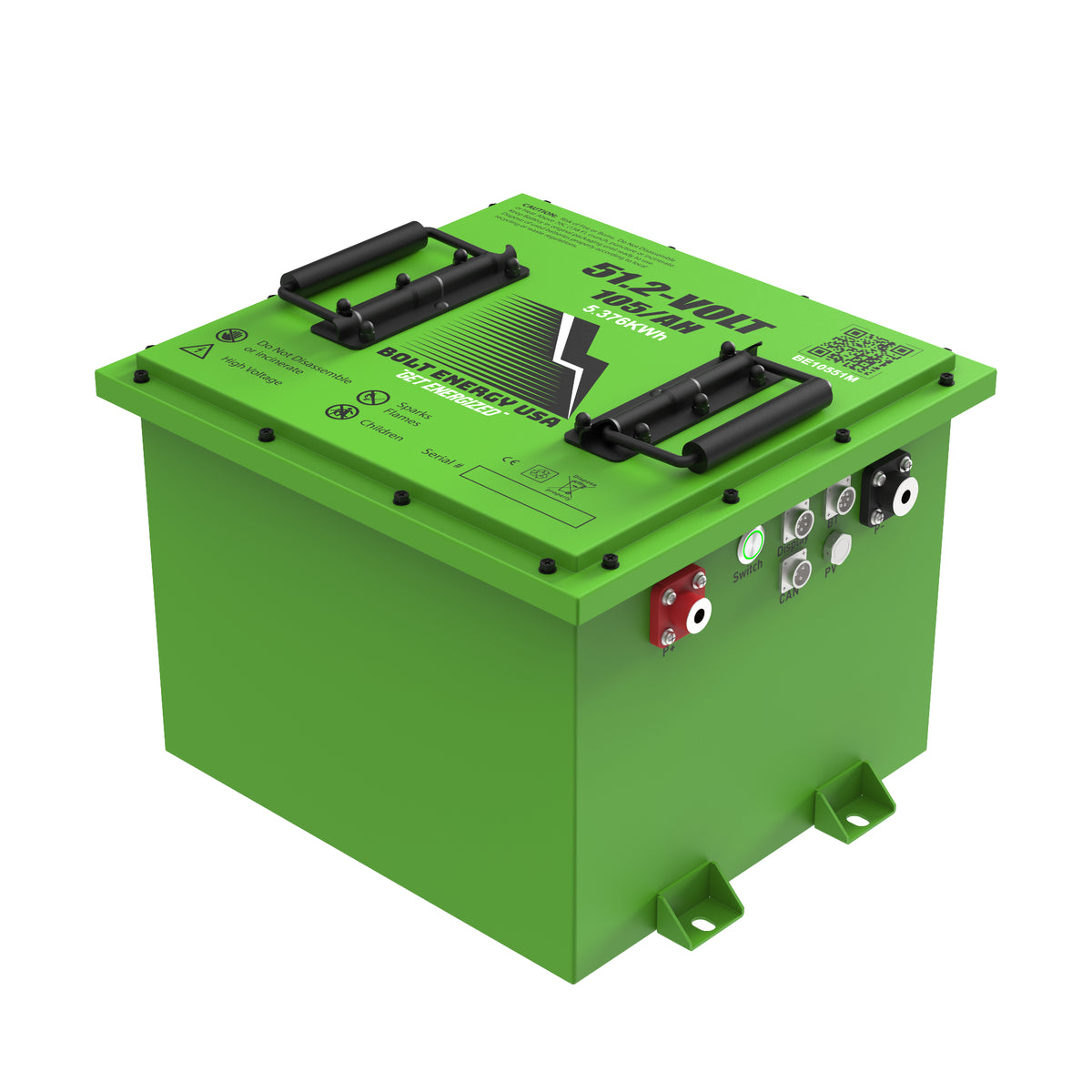

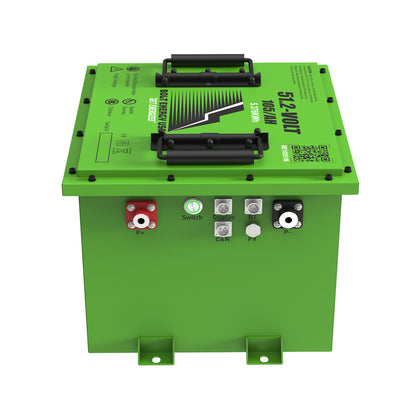

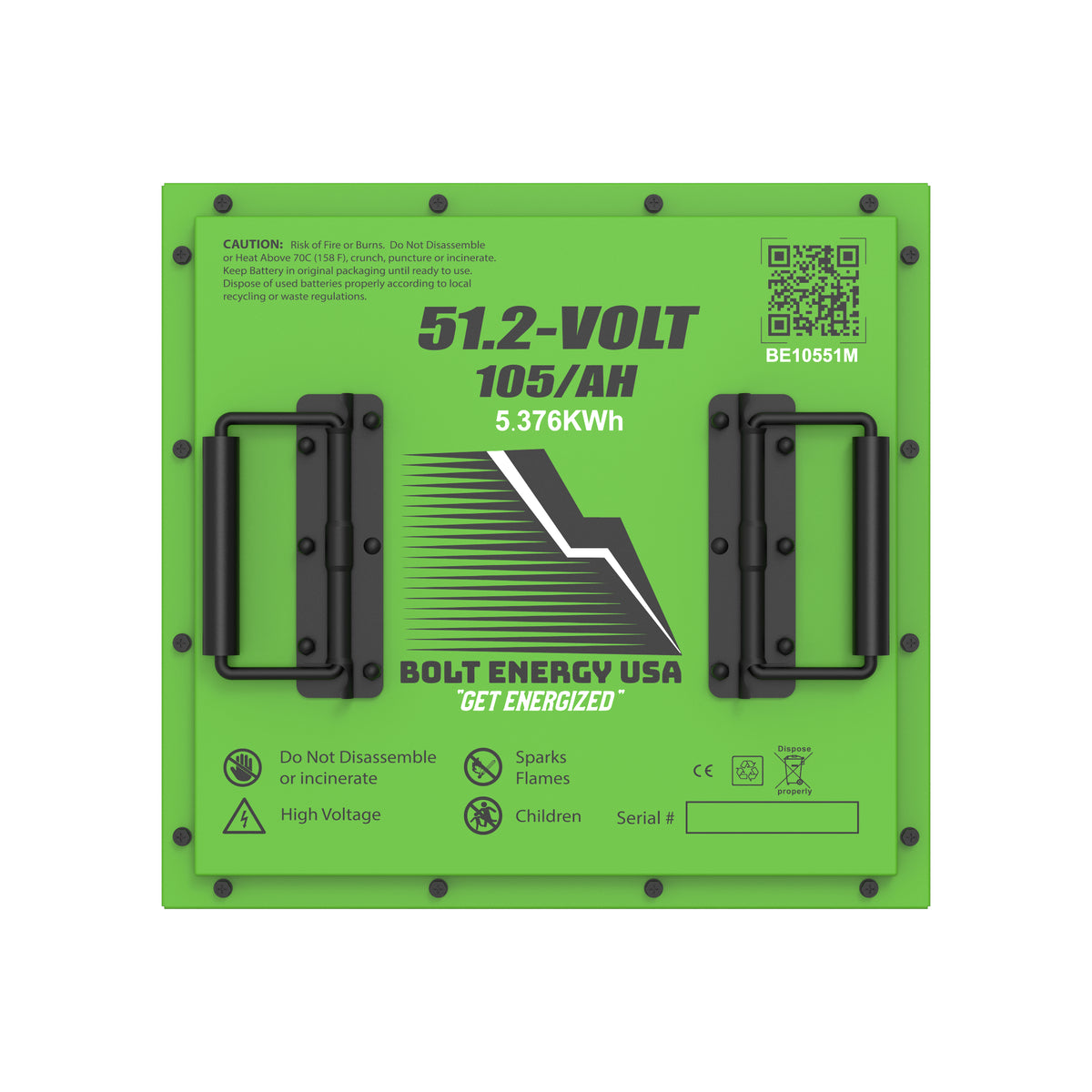

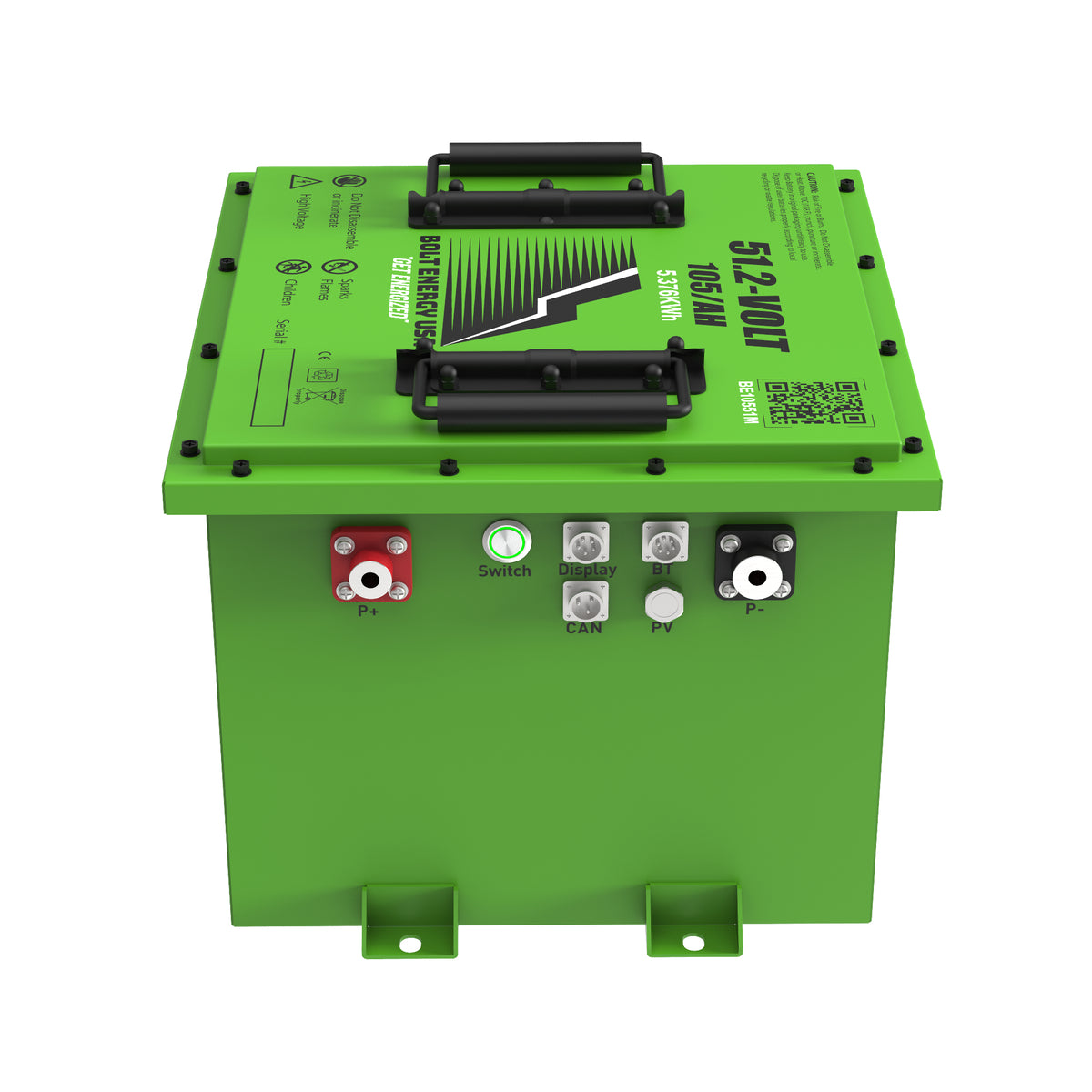

51.2V 105Ah “Square” Battery
Electrical Specifications:
- Nominal Voltage: 51.2V
- Working Voltage: 43.2 – 58.4V
- Recommended Voltage: 48.0V – 57.0V
- Nominal Capacity: 105Ah
- Energy: 5,376Wh
- Capacity at 25A: 252 min
- Efficiency: 0.99
- Self-Discharge: <3% per Month
Discharge Specifications:
- Maximum Continuous Discharge Current: 250A
- Peak Discharge Current: 520A ± 15.6A (30S)
- BMS Discharge Current Cut-Off:
- 260 A ± A7.8A (50S)
- 520A ± 15.6A (30S)
- BMS Discharge Voltage Cut-Off: 40V
- Recommended Low Voltage Disconnect: 48.0V
- BMS Reconnect Voltage: 41.6V
- Discharge Temperature: -4 to 149°F (-20 to 65°C)
Charge Specifications:
- Recommended Charge Current: 5 – 52A
- Maximum Input Current: 350A
- Charge Current Cut-Off: 375A
- BMS Charge Voltage Cut-Off: 58.5V
- Reconnect Voltage: <58.5V
- Charging Temp. Range: 34°F to 140°F (0-60°C)
Mechanical Specifications:

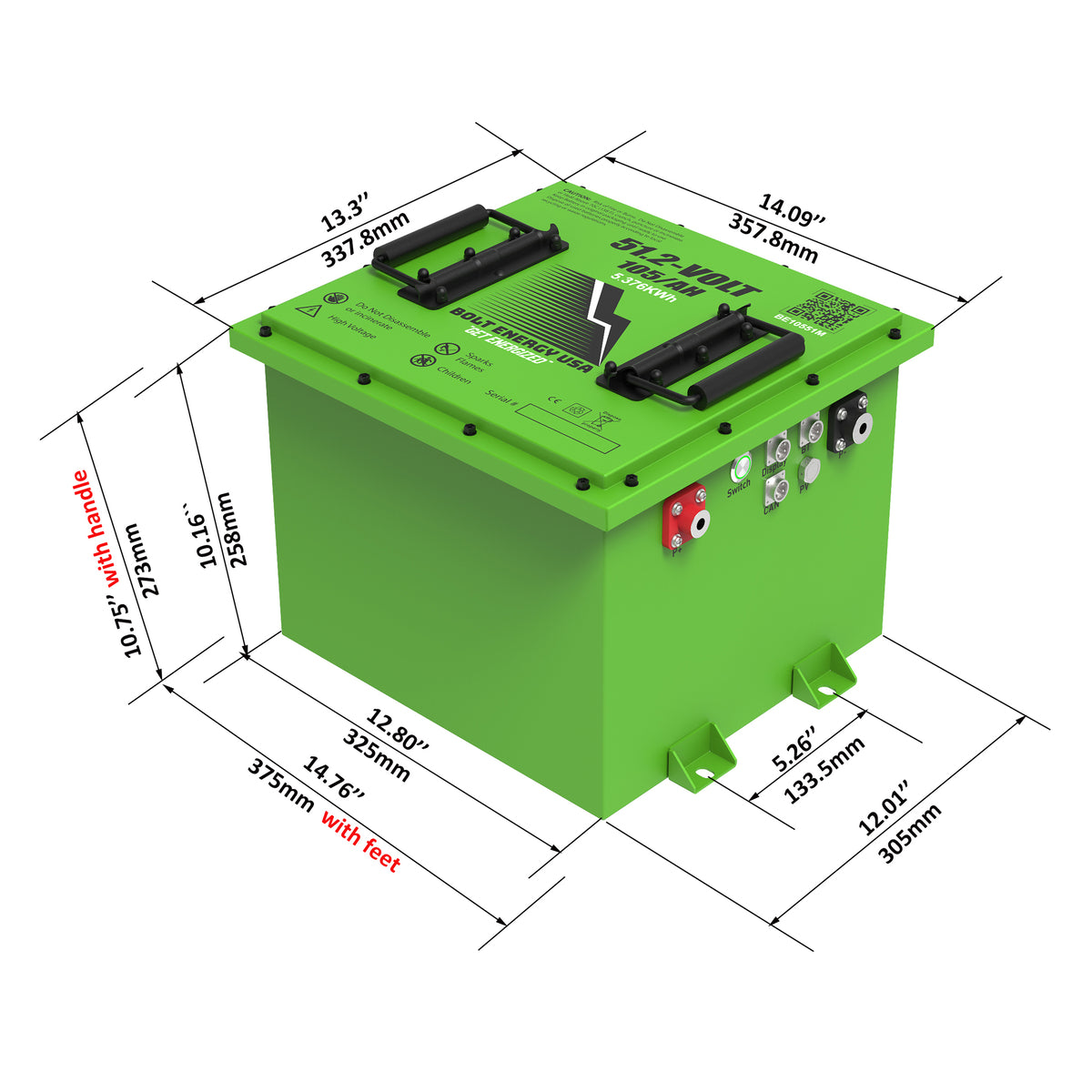

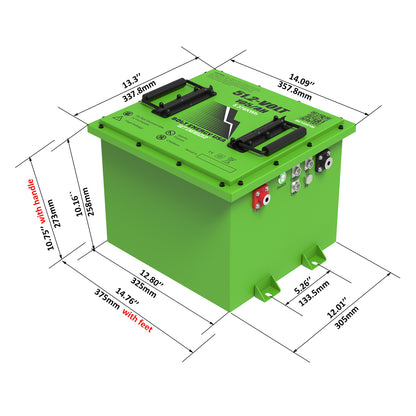

- Dimensions (L x W x H): 12.8 x 12.01" x 10.42"
- Weight: 100.8lbs (45.7kg)
- Terminal Type: M8*1.5*25mm
- Cell Configuration: 1P16S
- Case Material: Powder Coated Steel
- Enclosure Protection: Designed with IP66 Standard
- Cell Type – Chemistry: Prismatic- LiFePO4

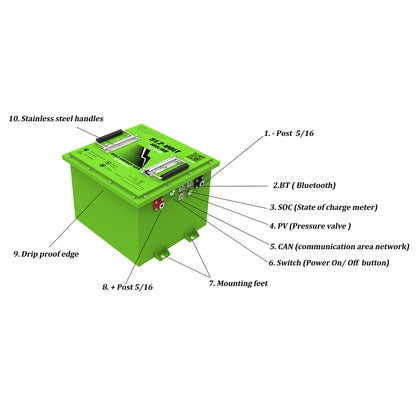

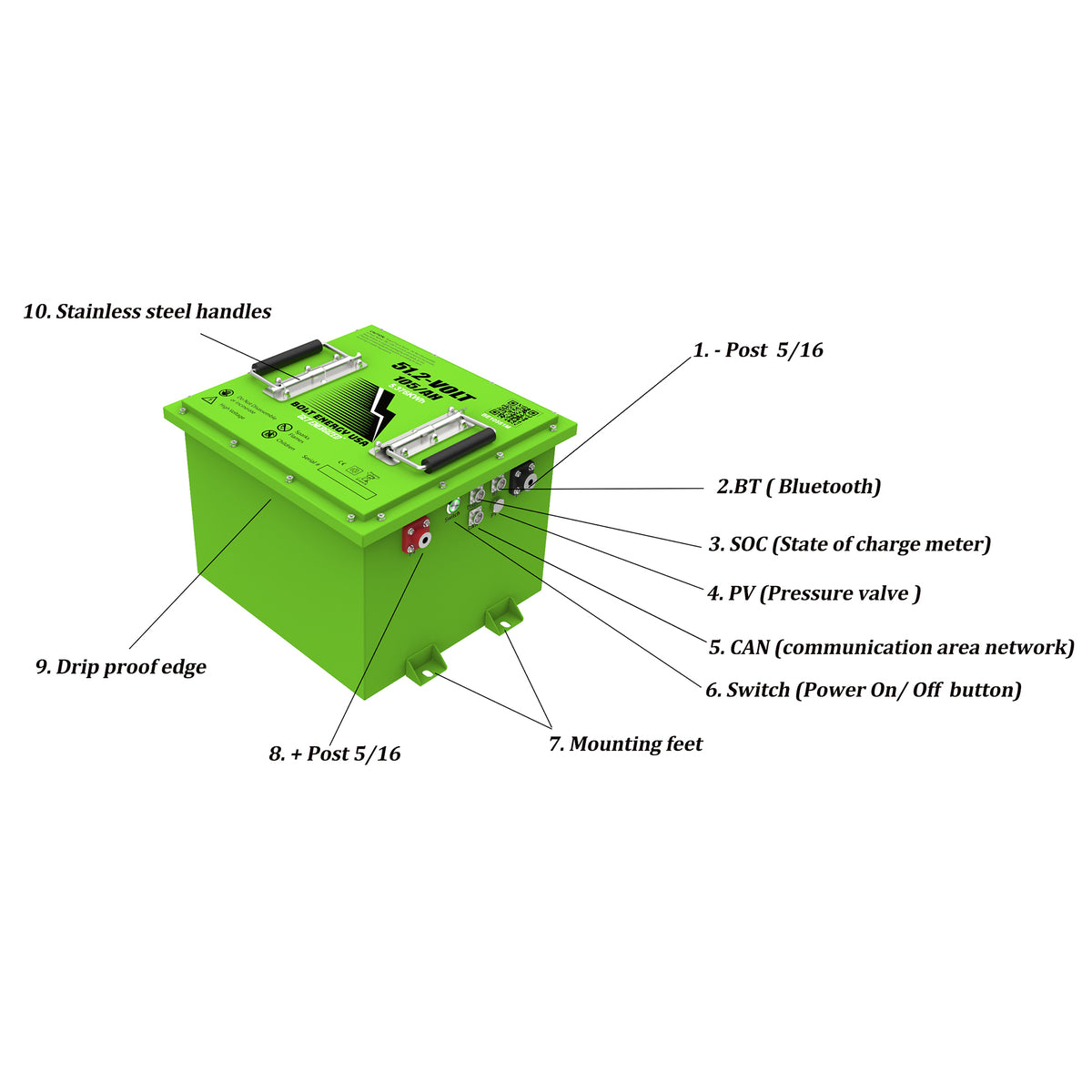

Communication:
- Bluetooth: Bluetooth receiver
- CAN: CAN port for testing battery
