Bolt Energy 72-Volt / 105-AH Standard kit “Power”

$3,595.00
$3,595.00 $3,955.00

Question about this product?

We're happy to help.

Up to 9% off

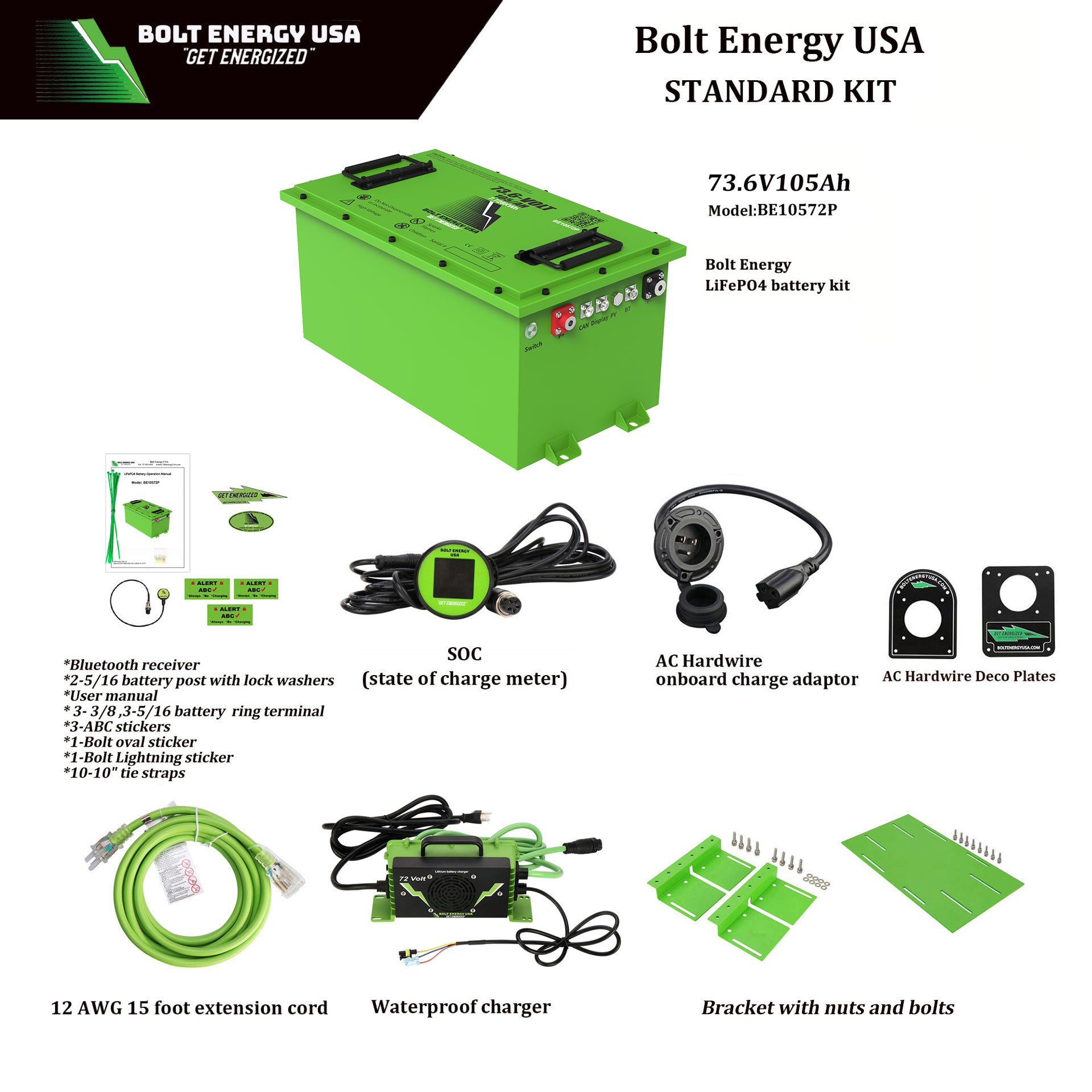

  • 72V-105AH BATTERY
  • Bluetooth receiver
  • Smart SOC “state of charge meter”
  • Owners manual “SIMPLE installation instructions”
  • 6- 3/8 battery ring terminal connectors
  • 10-10″ tie straps
  • Bolt Energy USA sticker’s
  • Waterproof high speed charger
  • Mounting brackets, Nuts & bolts
  • AC Hardwire PORT
  • DECO Cover plate AC hardwire universal or club car
  • 15ft-12 AWG Green lighted extension cord

All our golf cart lithium batteries are compatible with these golf cart brands: Advanced EV, Bad Boy Buggy, Bintelli, Club Car DS, Club Car Precedent, Coleman, EZGO TXT, EZGO RXV, Elite, EPIC, Evolution, GEM Cars, ICON, Kandi, Madjax X-series, Navitas Storm, Nivel X-series, Titan, Tomberlin, Trojan EV, Vivid, Yamaha. Bolt Energy USA is compatible with many other carts and electric EV vehicles. Please contact us for more information.

MECHANICAL SPECIFICATIONS

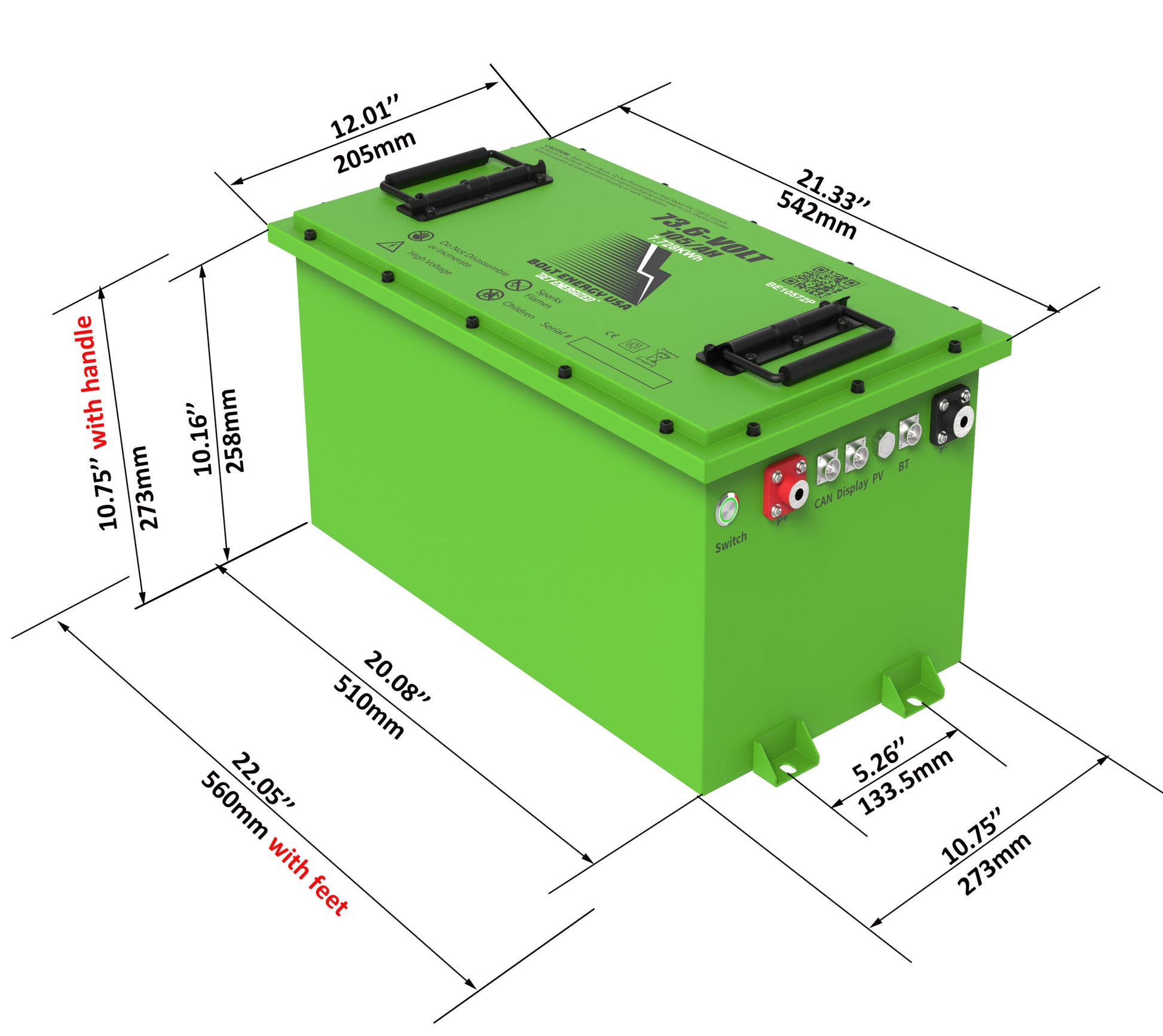

  • Dimensions (L x W x H): 20.08″ x 10.75″ x 10.39″
  • Weight: 137.26lbs (62.26kg)
  • Terminal Type: M8*1.5*25mm
  • Cell Configuration: 1P23S
  • Case Material: Powder Coated Steel
  • Enclosure Protection: Designed with IP66 Stardard
  • Cell Type – Chemistry: Prismatic- LiFePO4

DISCHARGE SPECIFICATIONS

  • Maximum Continuous Discharge Current: 250A
  • Peak Discharge Current: 520A ± 15.6A (30S)
  • BMS Discharge Current Cut-Off:
    • 260 A ± A7.8A (50S)
    • 520A ± 15.6A (30S)
  • BMS Discharge Voltage Cut-Off: 57.5V
  • Recommended Low Voltage Disconnect: 69.0V
  • BMS Reconnect Voltage: 60.0V
  • Discharge Temperature: -4 to 149°F (-20 to 65°C)

ELECTRICAL SPECIFICATION

  • Nominal Voltage: 73.6V
  • Working Voltage: 62 – 83.95V
  • Recommended Voltage: 69V – 81.93V
  • Nominal Capacity: 105Ah
  • Energy: 7,728Wh
  • Capacity @ 25A: 420 min
  • Efficiency: 0.99
  • Self Discharge: <3% per Month

CHARGE SPECIFICATIONS

  • Recommended Charge Current: 5 – 52A
  • Maximum Input Current: 350A
  • Charge Current Cut-Off: 375A
  • BMS Charge Voltage Cut-Off: 84V
  • Reconnect Voltage: <84V
  • Charging Temp. Range: 34°F to 140°F (0-60°C)

COMMUNICATION

  • Bluetooth: Bluetooth receiver
  • CAN: CAN port for testing battery

Dimensions

Weight:38 lb (17.2 kg)

Depth:7.1 in (180 mm)

Width:10.2 in (260 mm)

Height:10.8 in (274 mm)
