The Bolt Energy 74V 105AH lithium kit replaces the entire lead-acid pack in your 72V cart with a single 7.7 kWh LiFePO4 battery — and unlike most lithium kits, everything needed for the swap comes in the box: waterproof high-speed charger, Smart state-of-charge meter, Bluetooth receiver, mounting brackets, terminal hardware, and the AC hardwire port with cover plates.

At 137.26lbs (62.26kg), the pack sheds hundreds of pounds versus lead acid, which you feel immediately in hill climbing and braking. There is no watering, no terminal corrosion, and no equalization charging — top off a partial charge anytime with zero memory effect. The built-in BMS manages high continuous discharge with surge capability for upgraded controllers, and the Bluetooth receiver lets you check the pack from your phone.

Standard vs. Professional: the Standard kit covers a clean install on a healthy cart. The Professional kit adds a 400A heavy-duty solenoid, two 2AWG premium installation cables, a voltage reducer, and a lead battery removal strap — worth it on older carts or anything running a higher-amp controller.

Heated option: the Auto-Heated battery version charges safely below 32°F — the right call for carts stored in unheated garages, barns, or northern climates.

Every Bolt Energy pack is backed by a 12-year manufacturer warranty — among the longest coverage in the industry — with US-based support from us, the people who sell it.

Bolt Energy 74V 105AH — Specifications

Electrical Specifications
Nominal Voltage	73.6V
Working Voltage	62 – 83.95V
Recommended Voltage	69V – 81.93V
Nominal Capacity	105Ah
Energy	7,728Wh
Capacity at 25A	420 min
Efficiency	0.99
Self-Discharge	<3% per Month
Discharge Specifications
Maximum Continuous Discharge Current	250A
Peak Discharge Current	520A ± 15.6A (30S)
BMS Discharge Current Cut-Off
BMS Discharge Voltage Cut-Off	57.5V
Recommended Low Voltage Disconnect	69.0V
BMS Reconnect Voltage	60.0V
Discharge Temperature	-4 to 149°F (-20 to 65°C)
Charge Specifications
Recommended Charge Current	5 – 52A
Maximum Input Current	350A
Charge Current Cut-Off	375A
BMS Charge Voltage Cut-Off	84V
Reconnect Voltage	<84V
Charging Temp. Range	34°F to 140°F (0-60°C)
Mechanical Specifications
Dimensions (L x W x H)	20.08" x 10.75" x 10.39"
Weight	137.26lbs (62.26kg)
Terminal Type	M81.525mm
Cell Configuration	1P23S
Case Material	Powder Coated Steel
Enclosure Protection	Designed with IP66 Standard
Cell Type – Chemistry	Prismatic- LiFePO4
Communication
Bluetooth	Bluetooth receiver
CAN	CAN port for testing battery

Specifications published by Bolt Energy USA.

Downloads

Bolt Energy Manufacturer Warranty (PDF)

Installation Video

Select your cart above — if an install video is available for that fitment, it will appear here. You can also browse all videos on our Installation Videos hub.

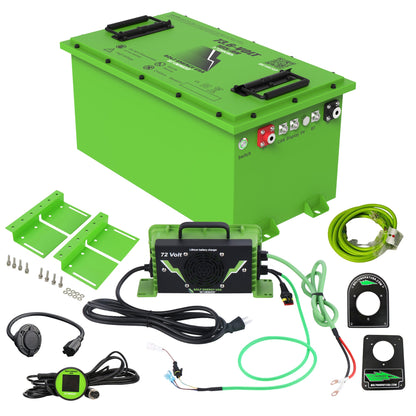

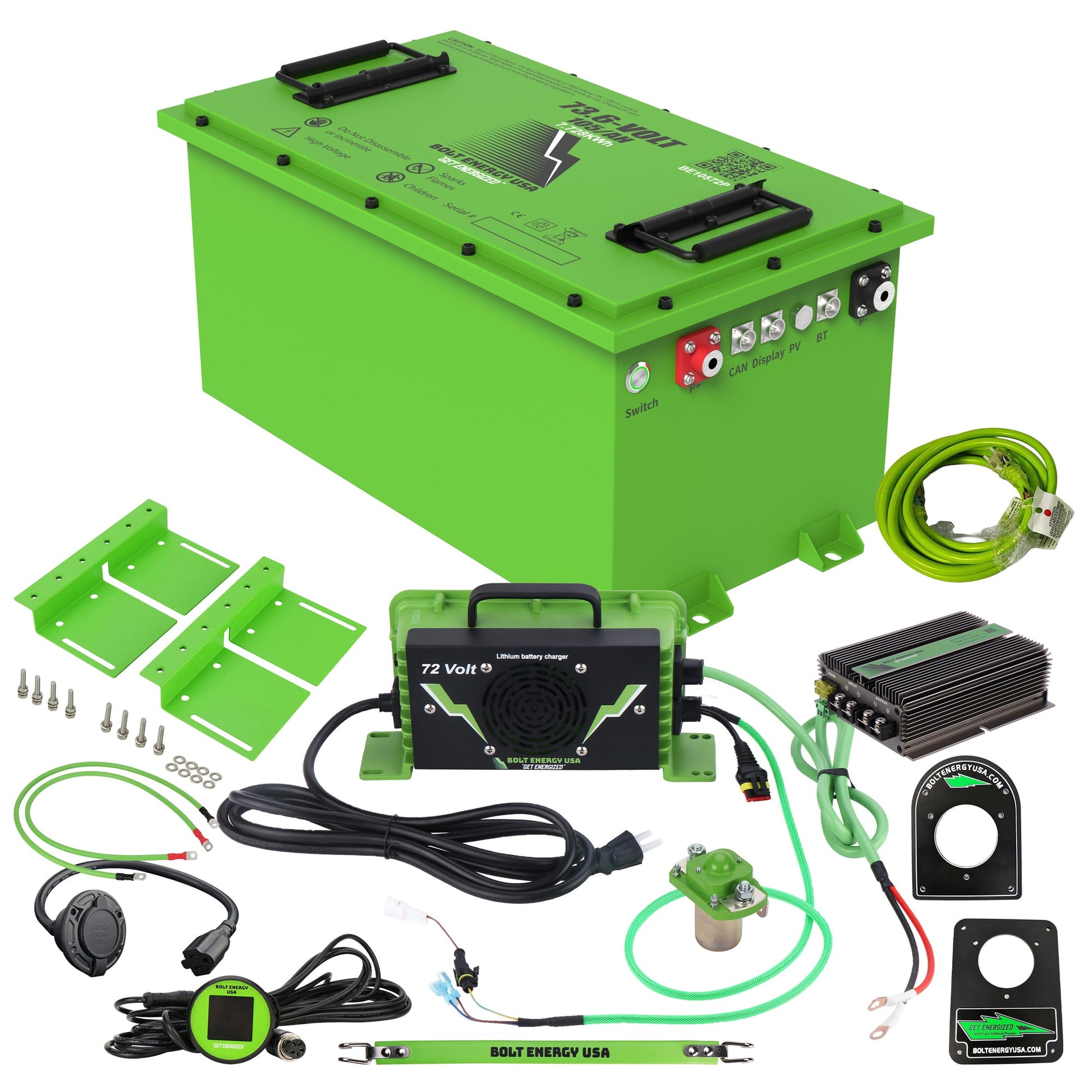

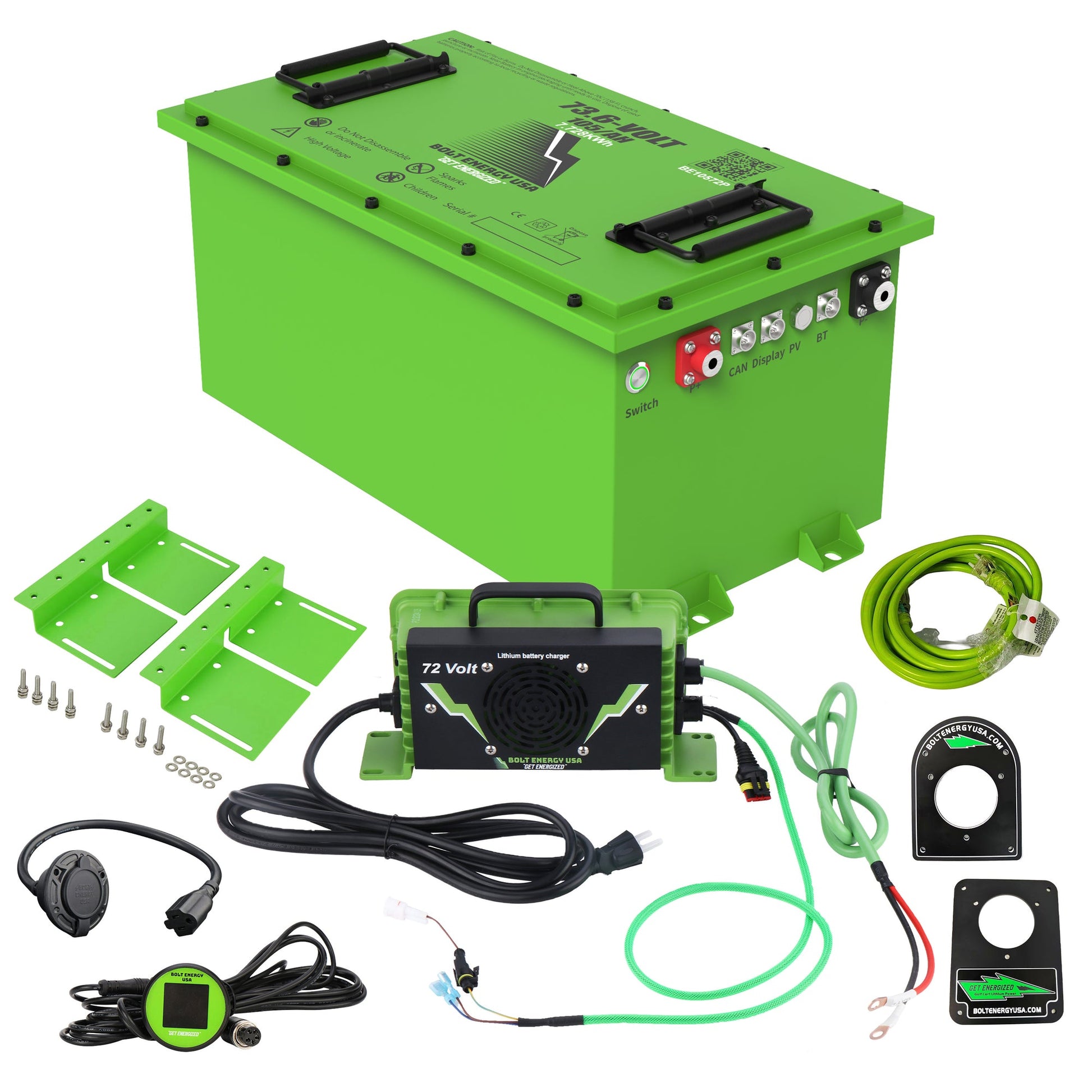

Advanced EV Advent — Professional — Heated — What's Included

73.6V 105Ah Battery
Bluetooth receiver
Smart SOC (State of charge meter)
Owner’s manual
Six 3/8 battery ring terminal connectors
Ten 10" tie straps
Bolt Energy USA stickers
Waterproof high-speed charger
Mounting brackets, Nuts, and bolts
AC Hardwire Port
AC hardwire DECO cover plates
30-amp reducer
Two 40" 2AWG premium installation cables
400A solenoid
Lead battery removal strap
15ft 12 AWG Green lighted extension cord
Heated Battery Specifications:
Heated batteries warm themselves as they start to charge, and once they hit around 34 degrees, it starts charging normally
The heating system only runs when the battery is under the charging temperature and will automatically shut off once the proper temperature is reached
The battery can charge in unheated places such as garages, barns and even outdoors
The heating system only activates while the charger is plugged in
Heated batteries can warm themselves overnight and be ready to use the next day
A heated battery temperature charge and discharge specifications still operate the same as standard batteries
