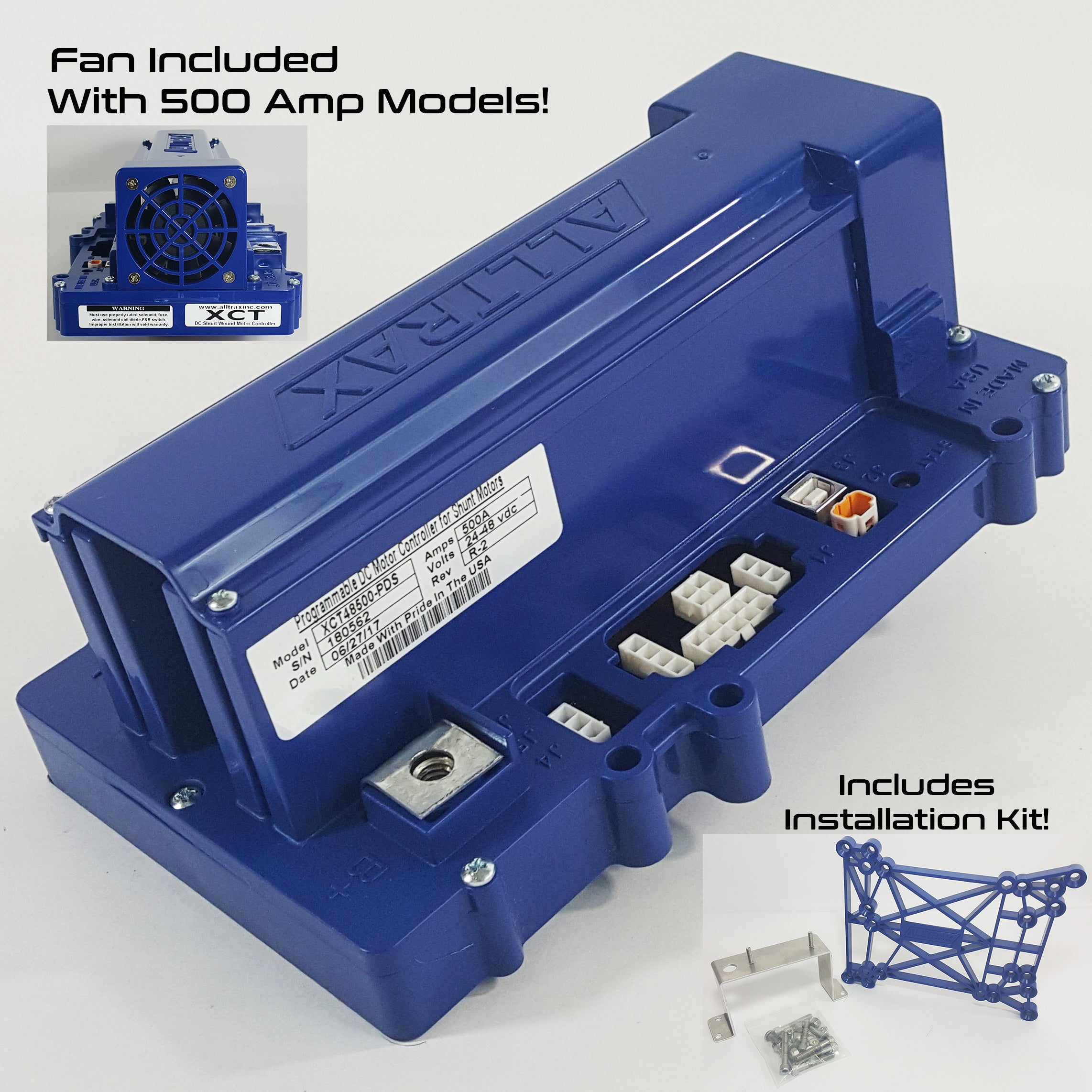

EZGO TXT PDS 48V Alltrax 500A Controller Upgrade

Upgrade controller for all EZGO PDS.

Features

• OEM Connector so stock harness plugs right in
• Flexible USB programming
• Integrated heatsink mounts on any suitable surface
• Auto-throttle calibration for smooth operation
• Sealed epoxy electronics making the controller immune to the elements

Specifications

• 12-48 Volts
• 500 Amps Peak
• ABS + PC510 plastic enclosure
• All copper heat sinks
• Adjustable undervoltage cutback 8-60 VDC
• Adjustable overvoltage shutdown 22-90 VDC
• Operating Frequency: 18k Hz
• Voltage drop @ 100amps: <0.18V
• Control voltage KSI keyswitch and reverse: 18-70V Nom, 70 VDC Max
• Powered Up Standby Current <0.02A (20mA)
• Relay solenoid drive output current: 5amp peak, 1.0A Continuous
