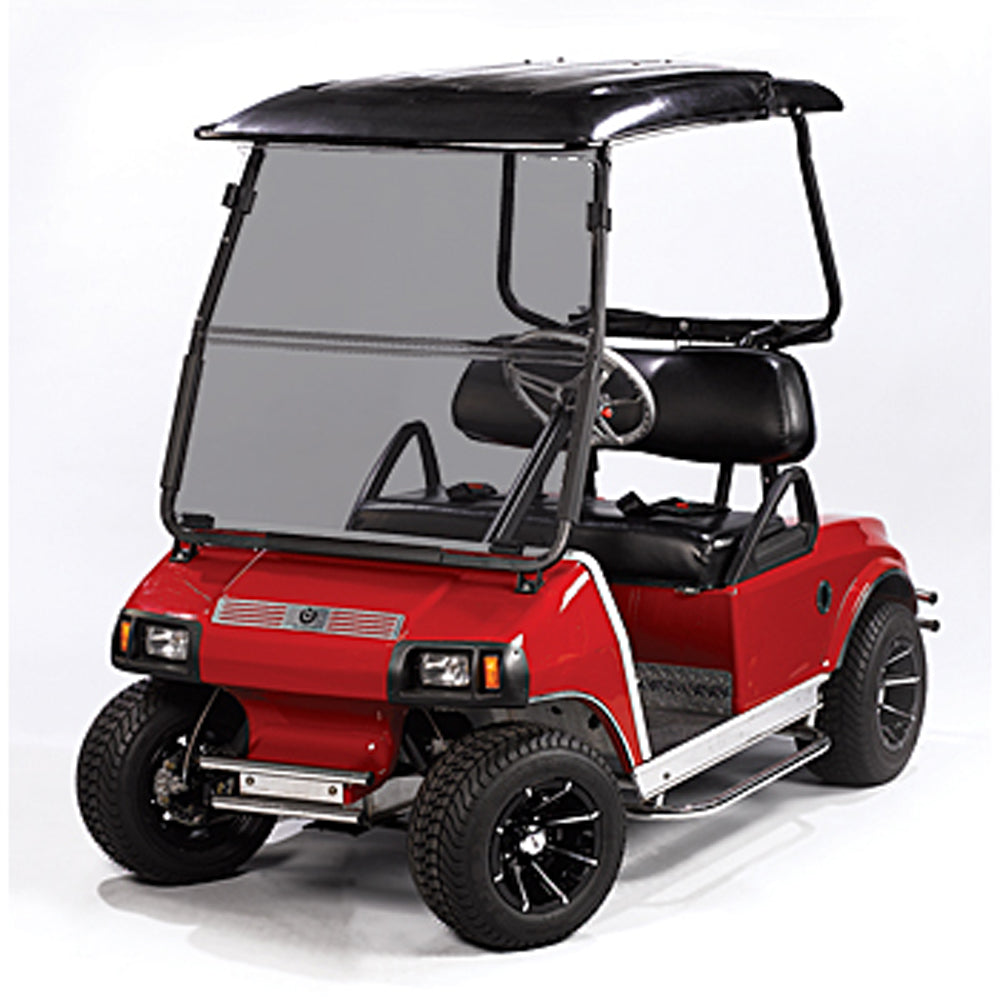

Club Car DS Won't Move? V-Glide & PowerDrive Diagnostics
Applies to V-Glide (36V, through 1994) and PowerDrive (48V, 1995–2000) Club Car DS models. IQ-era DS carts (2001–2008) share the Precedent's architecture — use the MCOR won't-move guide instead; it applies nearly line for line. Not sure which DS you have? Two-minute identification here.
A dead DS from these generations is a different diagnostic animal than a modern cart — simpler in the best way. No MCOR, no speed sensor limp mode; on a V-Glide, not even a controller. Which means the fault list is short, the tests are cheap, and on a cart this age one suspect towers over everything else. Start there.
Before you start: key off, Tow/Run to TOW (PowerDrive carts) before touching battery connections, no jewelry, no tools laid across terminals. Jack stands if wheels leave the ground.
Suspect #1 on any 25+ year old cart: the battery circuit
Not just weak batteries — the connections. A quarter century of corrosion in terminals, cable lugs, and ground points causes more dead DS carts than every electrical component combined, and it causes every symptom in the book: dead cart, intermittent cart, clicks-but-won't-move, slow cart, cart that dies on hills.
- Pack voltage, rested: ~38V on a healthy 36V V-Glide pack, ~50–51V on a 48V PowerDrive pack. Well below that: charge and load-test before diagnosing anything else.
- Every battery individually: one dead cell in one battery drops the pack and mimics everything.
- Every cable and terminal: wiggle-test, look for green, look for heat-swollen lugs. On a cart this age, replace the cable set rather than the worst cable — the rest are the same age and the next failure is already forming.
Then: the solenoid click test
Key on, forward selected, pedal down. Listen under the seat.
No click — trace the control side
| Check | How | Notes |
|---|---|---|
| Key switch | Continuity across it, key on | Cheap, common, 15-minute swap |
| Forward/Reverse switch | Inspect contacts; cycle firmly — halfway is neutral | The lever-style F&R on these carts wears its contacts on the forward side; runs-in-reverse-only is this part announcing itself |
| Pedal microswitch | Listen for the faint click at the top of pedal travel; check continuity | No signal here = solenoid never told to fire |
| Solenoid coil | Voltage across the two small terminals, pedal pressed | Voltage but no click = dead coil, replace the solenoid. No voltage = the break is upstream in this table |
| PowerDrive only: charger interlock | Fully unplug, cycle Tow/Run and key | The OBC locks out the drivetrain while it thinks a charger is connected; a stuck interlock presents as a dead cart. Persistent OBC weirdness → the OBC guide |
Clicks but doesn't move
- Solenoid contacts: pack voltage across the two large terminals during the click = burned contacts. The coil works; the switch inside doesn't. This is the most-replaced electrical part on these carts for a reason.
- V-Glide carts — inspect the wiper board: lift the seat and look at the wiper and its contact points. Burned, pitted, or carbon-fouled contacts, or a wiper arm not sweeping smoothly with the pedal, is the V-Glide's signature failure. Contacts and boards are still available and affordable — this system was built to be serviced.
- V-Glide resistor coils: a cart that only moves at top speed (or only at low speed) points at the resistor bank between wiper positions.
- Motor: hum with no movement = possible seized brake/axle or failed motor; silence with everything above verified = motor brushes and connections. DS motors are wonderfully rebuildable.
"It ran when parked." The most common DS story we hear — and it's almost always the battery circuit. Months of sitting finishes off marginal batteries and lets corrosion seal the connections. Before ordering parts for a barn-find DS: charge it properly, clean every connection, then run this page. Half of them drive away at that point.
Parts this page usually ends with
- Solenoids for Club Car
- Battery cables and terminals
- Forward/reverse switches for Club Car DS
- V-Glide wiper and resistor parts
- Club Car DS parts
If the batteries failed the tests above, read the DS lithium conversion guide before buying another lead-acid set — on a 48V DS it's the last battery decision the cart ever needs, and it retires the OBC drama with it.
Stuck between suspects? Email your measurements and serial number. We've diagnosed thousands of these.
