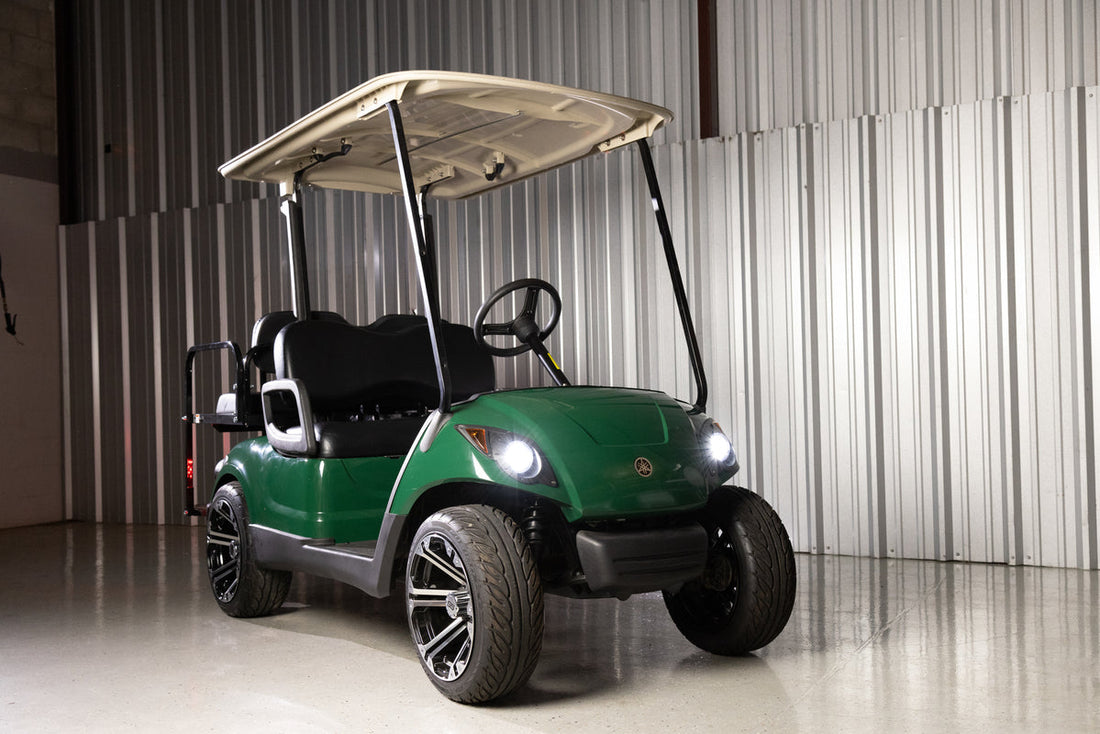

Yamaha Drive (G29) Won't Move? Tow/Run Switch & Solenoid Fix
Applies to the electric Yamaha Drive / G29, 2007–2016 (serial prefixes JW2 and JW9). Not sure which Yamaha you have? Start with the serial number decoder.
A 48V Drive that won't move is almost always one of seven things, and you can rule most of them out in your driveway with a $20 multimeter. Work this list in order — it's sequenced from most common and cheapest to least common and most expensive, which is the order a shop would check them too.
Before you start: key off, remove jewelry, and don't lay tools across battery terminals — a 48V pack will weld a wrench. If you need to lift the cart, use jack stands, never just a jack.
First, the 30-second checks
- Tow/Run switch is in RUN. It's under the seat near the batteries. In TOW, the controller is disconnected on purpose so you can service the pack or tow the cart. Half the "dead cart" calls we take end here.
- The charger is unplugged. The charge receptacle has an interlock that disables the drivetrain while a cord is plugged in — including a cord plugged into the cart but not the wall.
- The forward/reverse switch is fully engaged. Halfway between F and R is neutral. Cycle it firmly.
Now listen: does the solenoid click?
Turn the key on, select forward, press the pedal, and listen under the seat. That single data point splits the diagnosis in half.
No click — the control circuit isn't waking up
| Check | How | What you'll find |
|---|---|---|
| Pack voltage | Multimeter across the full pack, main positive to main negative | A healthy rested 48V pack reads roughly 50–51V. Below ~46V rested, charge before diagnosing further — a low pack can drop out the control circuit entirely. |
| Battery connections | Inspect and wiggle every terminal and jumper cable | Corroded or loose terminals are the #1 cause of intermittent no-starts. Clean with a wire brush, retorque, coat with terminal protectant. |
| Tow/Run switch itself | With the pack disconnected, check continuity across the switch in RUN | These switches corrode and fail — this was exactly the part the customer question that inspired this series was about. No continuity in RUN = replace it. It's a 15-minute job. |
| Key switch | Continuity across the key switch terminals, key on | Cheap part, common failure, same 15-minute swap. |
| Pedal stop switch | Listen for the faint click at the top of pedal travel; check continuity at the pedal box microswitch | If the accelerator's stop switch never closes, the solenoid never gets its signal. |
| Solenoid coil | Measure voltage across the two small terminals while pressing the pedal | ~48V present but no click = dead coil, replace the solenoid. No voltage = the problem is upstream (switches above). |
Clicks but doesn't move — power isn't reaching the motor
| Check | How | What you'll find |
|---|---|---|
| Solenoid contacts | Voltage across the two large terminals while pedal is pressed | Pack voltage across the big posts while clicking = burned contacts; the coil works but the switch inside doesn't. Replace the solenoid. |
| Throttle sensor | Back-probe the pedal box sensor output while slowly pressing the pedal | The controller needs a clean, rising throttle signal. A dead or erratic sensor gives you a click and a dead pedal, or surging. |
| Motor | Brush inspection; listen for a hum with pedal pressed | A hum with no movement can be a failed motor or a seized brake/axle. Silence with everything else good points at the controller. |
| Controller | Last resort by elimination | Stock Drive controllers are durable; genuinely dead ones usually follow water intrusion or a battery-work mistake. If you've cleared everything above, this is the remaining suspect — and a good moment to consider an upgrade instead of a straight replacement. |
Moves in one direction but not the other? That's the forward/reverse switch — the contacts wear on the side you use most (forward). Inspect the F/R switch contacts before touching anything else.
The parts this page usually ends with
- Tow/Run switch for Yamaha Drive / G29 — confirm your serial prefix (JW2/JW9) and we'll verify fitment before you order
- 48V solenoid for Yamaha Drive
- Key switch for Yamaha Drive
- Forward/reverse switch for Yamaha Drive
- All Yamaha Drive / G29 electrical parts
If your batteries tested weak during any of this, that's not a side note — a tired lead-acid pack causes half the symptoms on this page. It might be time to read the G29 lithium conversion guide before you buy six new lead-acid batteries.
Stuck between two possibilities? Email us what you measured and your serial number — we diagnose these daily and we'd rather confirm the right part than process a return.
